AGRIO HY-500

Name: AGRIO HY-500
Brand: VOLTeVIA

100% Electric Orchard Transporter · Lift & Dump for Harvest Work

Field-verified in Korea · orchard & greenhouse trials · LFP battery option available

500 kg

Cargo Payload

48V · 5kW

AC induction motor

20% Grade

Lugged tyres · diff-lock

Tested in Real Operation

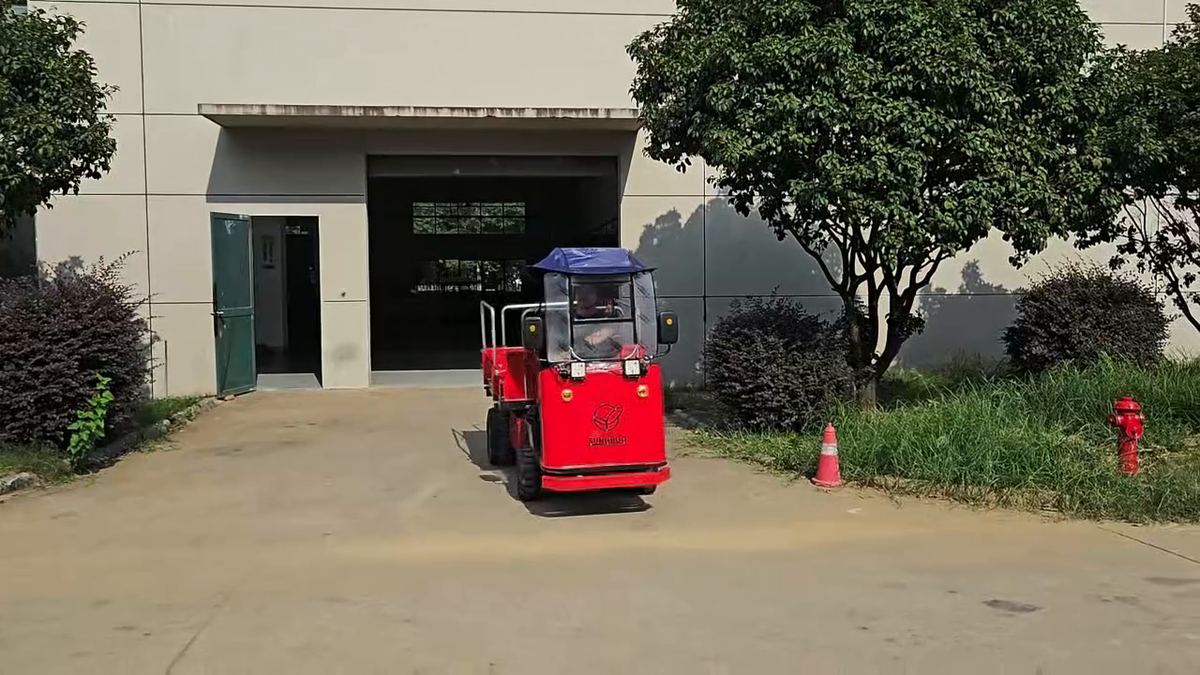

Road Ready

Stable on paved and dirt farm roads, with canopy option

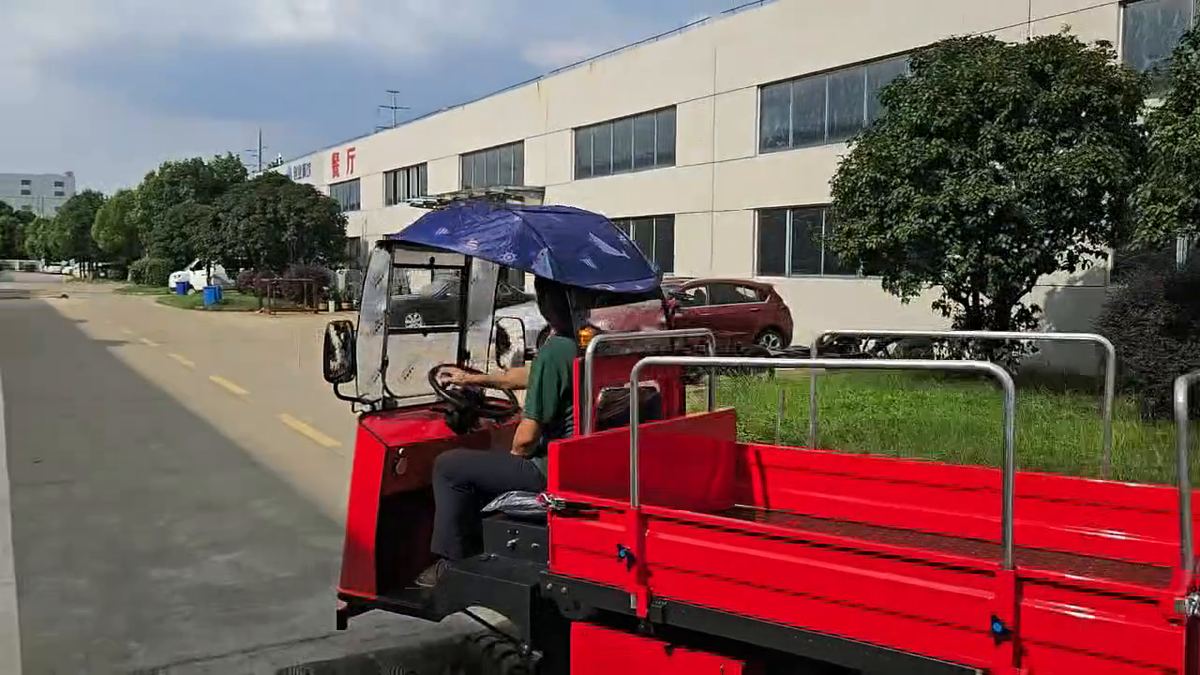

Full-size Cargo Bed

Three-side steel bed hauls bulky farm loads

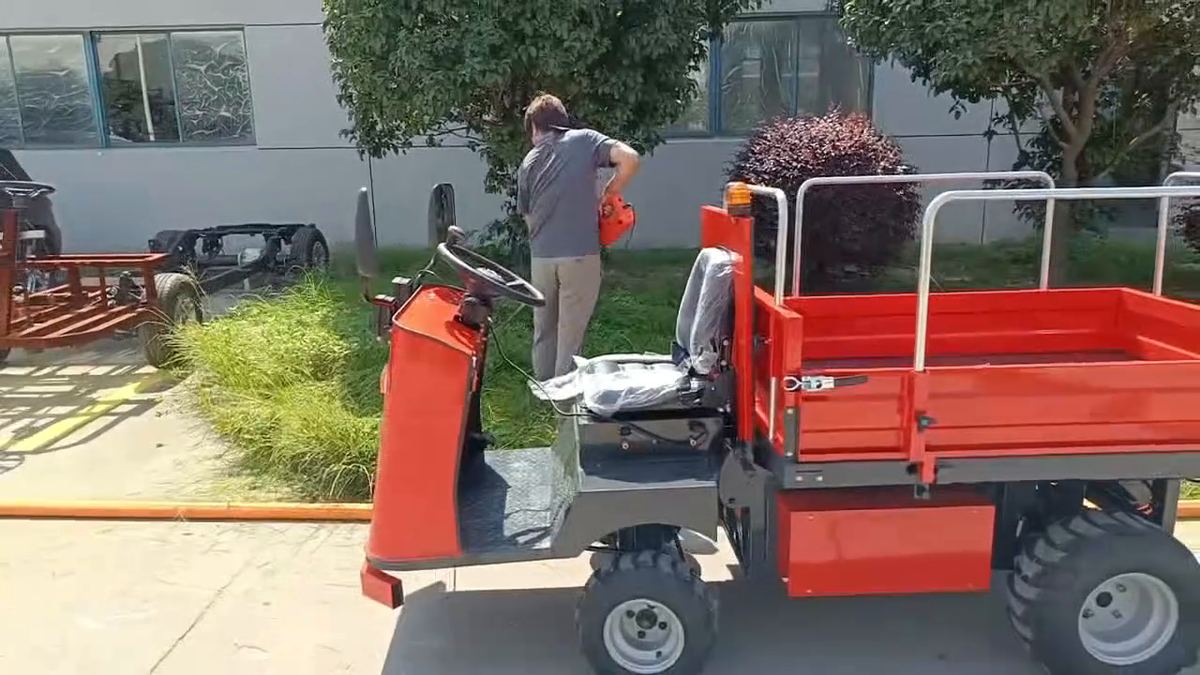

Onboard Power

Runs electric tools like brush cutters from the battery

Why AGRIO HY-500

Built for Orchards

Harvest, prune and haul on one compact platform.

Lift to Canopy

Scissor deck raises pickers to reach upper branches.

Tip & Unload

Hydraulic three-way box dumps crates and harvest fast.

Diff-Lock Traction

Rear drive · 15.17 ratio holds grip on soft ground.

48V Electric

Quiet, zero-emission running with optional LFP battery.

Tight 5.5 m Turn

Maneuvers narrow orchard rows with ease.

One platform, three jobs

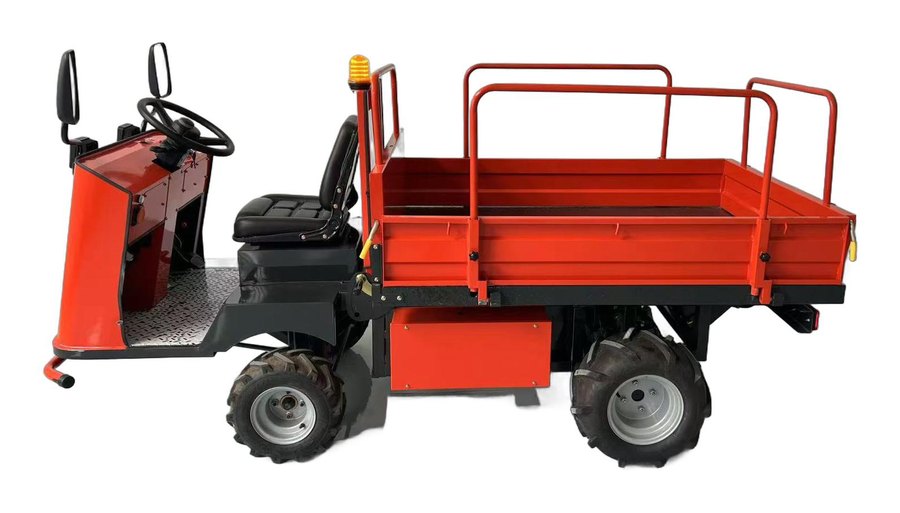

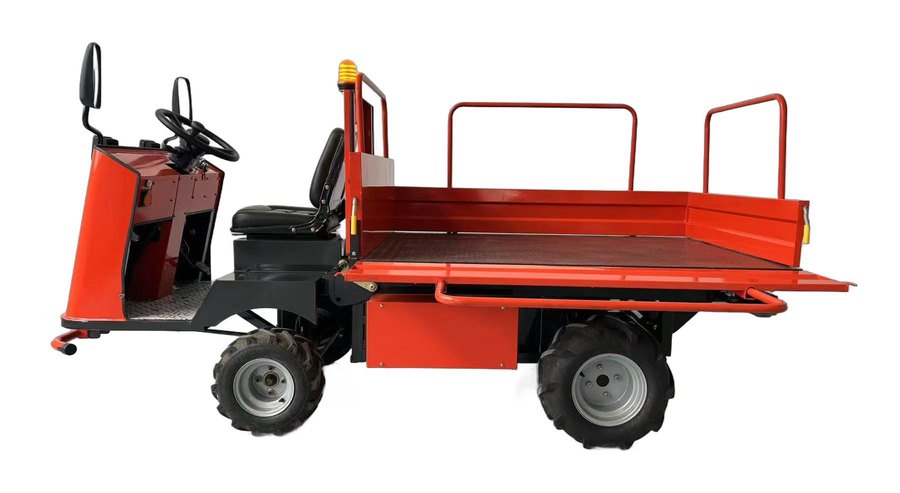

Flatbed / Cargo Mode

Drop-side deck for crates, bins and bulk farm loads.

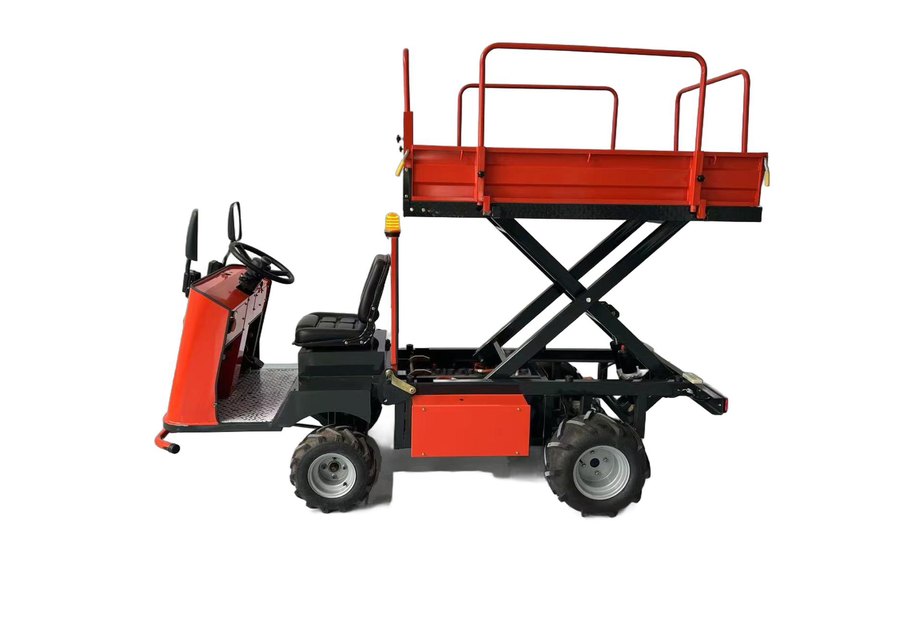

Scissor Lift Mode

Raise the deck so pickers reach upper branches without ladders.

Hydraulic Dump Mode

Three-way tilting box unloads crates, soil or harvest in seconds.

Key Specifications

Configuration48V · 5 kW

MotorAC asynchronous · 3 kW

Dimensions (L×W×H)2,980 × 1,315 × 1,455 mm

ControllerCAN · 3 kW

Cargo box (inner)1,610 × 1,156 × 250 mm

Battery8V/190Ah ×6 (LFP optional)

Payload500 kg

Range60 km (no-load)

Lift capacity> 400 kg

Charging8–10 h · 95–265V

Curb / Gross weight740 / 1,305 kg

DriveRear-drive · diff-lock (15.17)

Max speed9 km/h (adjustable)

BrakeDrum · energy recovery

Gradeability20%

TyresF 16×6.50-8 / R 20×10-10

Turning diameter5.5 m

SteeringRack & pinion · power-assist

Ground clearance120 mm

EquipmentBeacon · mirrors · remote · ECO

Lead-acid standard, LFP optional · Korea & regional final spec available on request.
